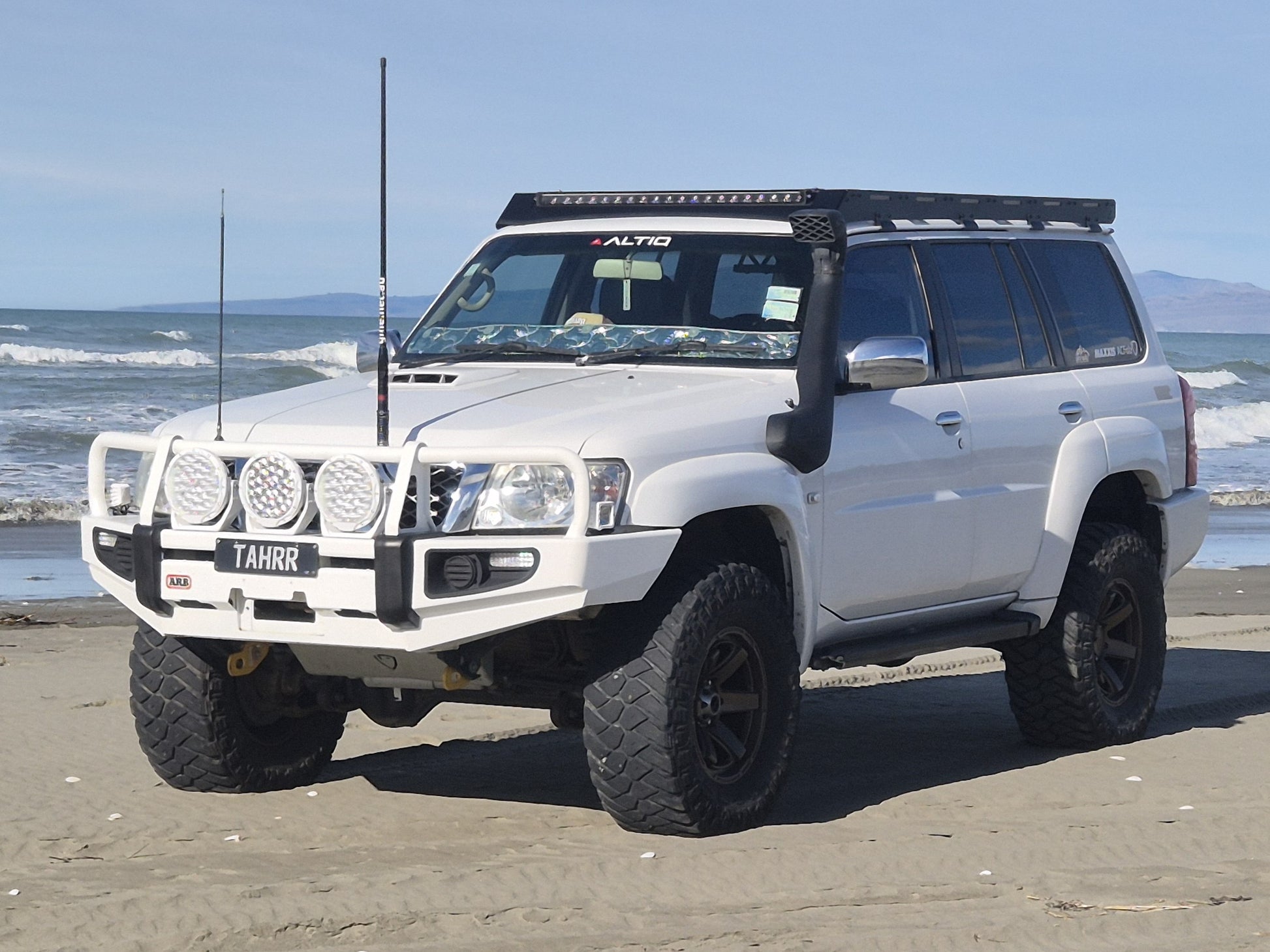

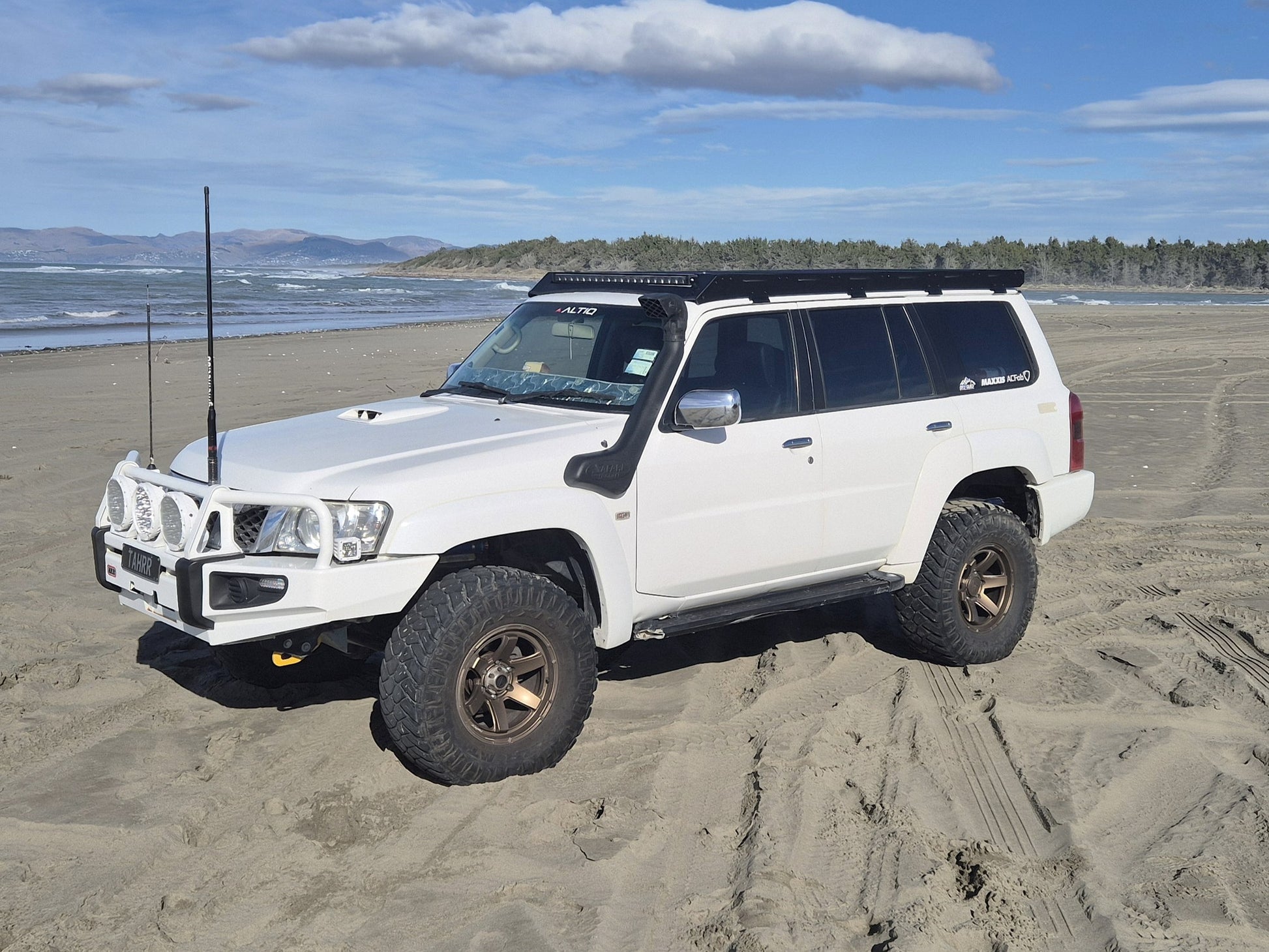

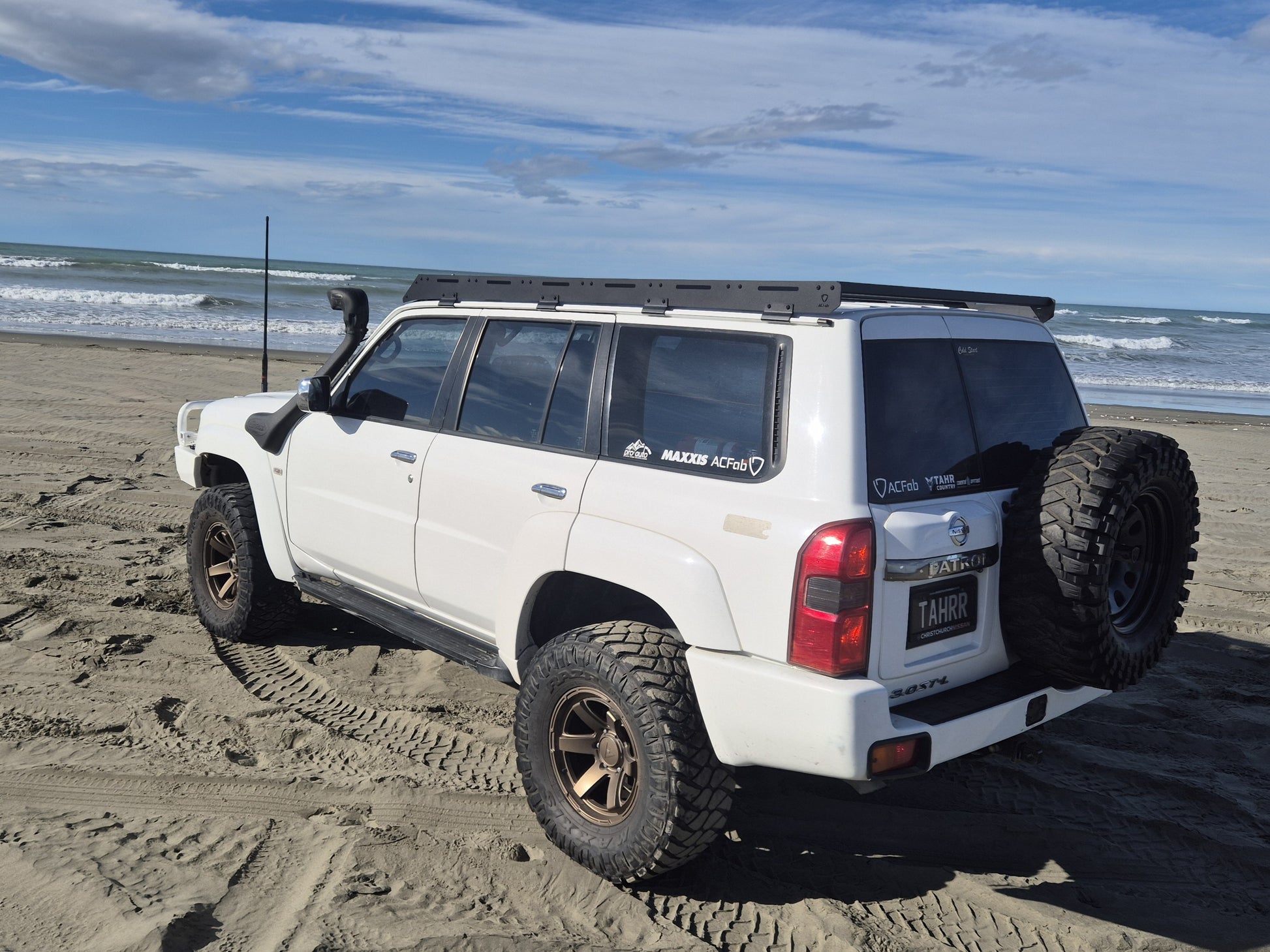

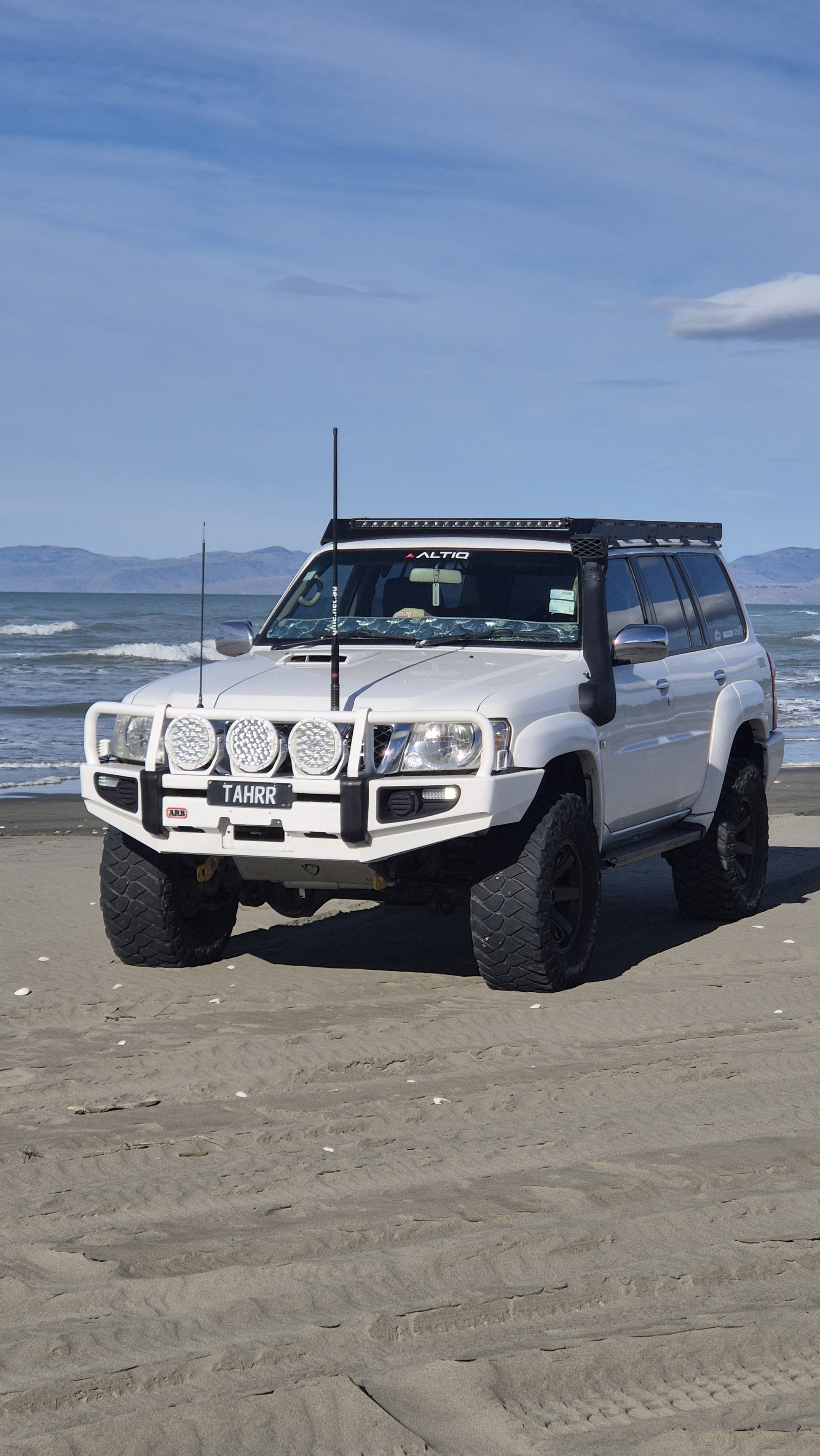

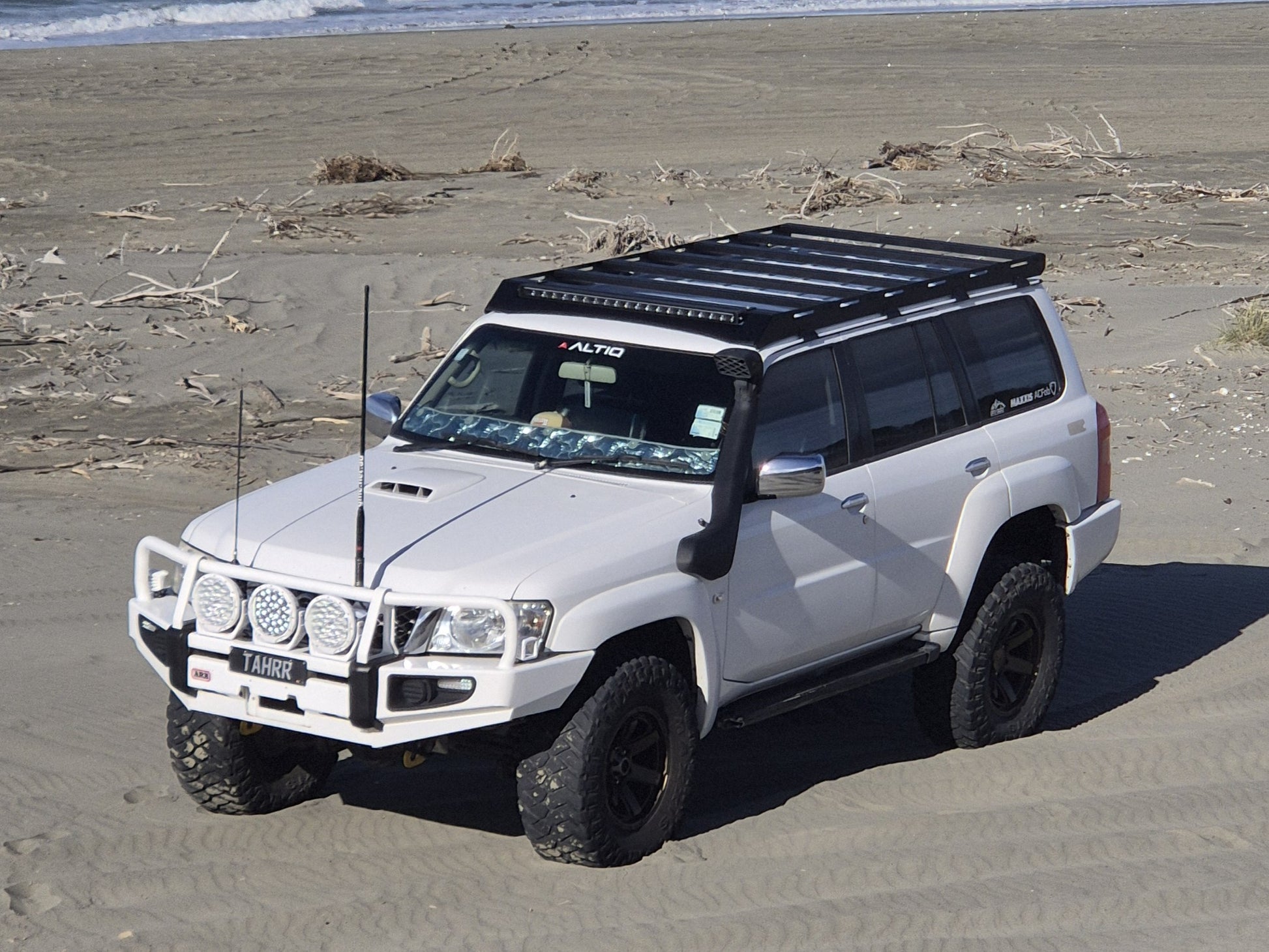

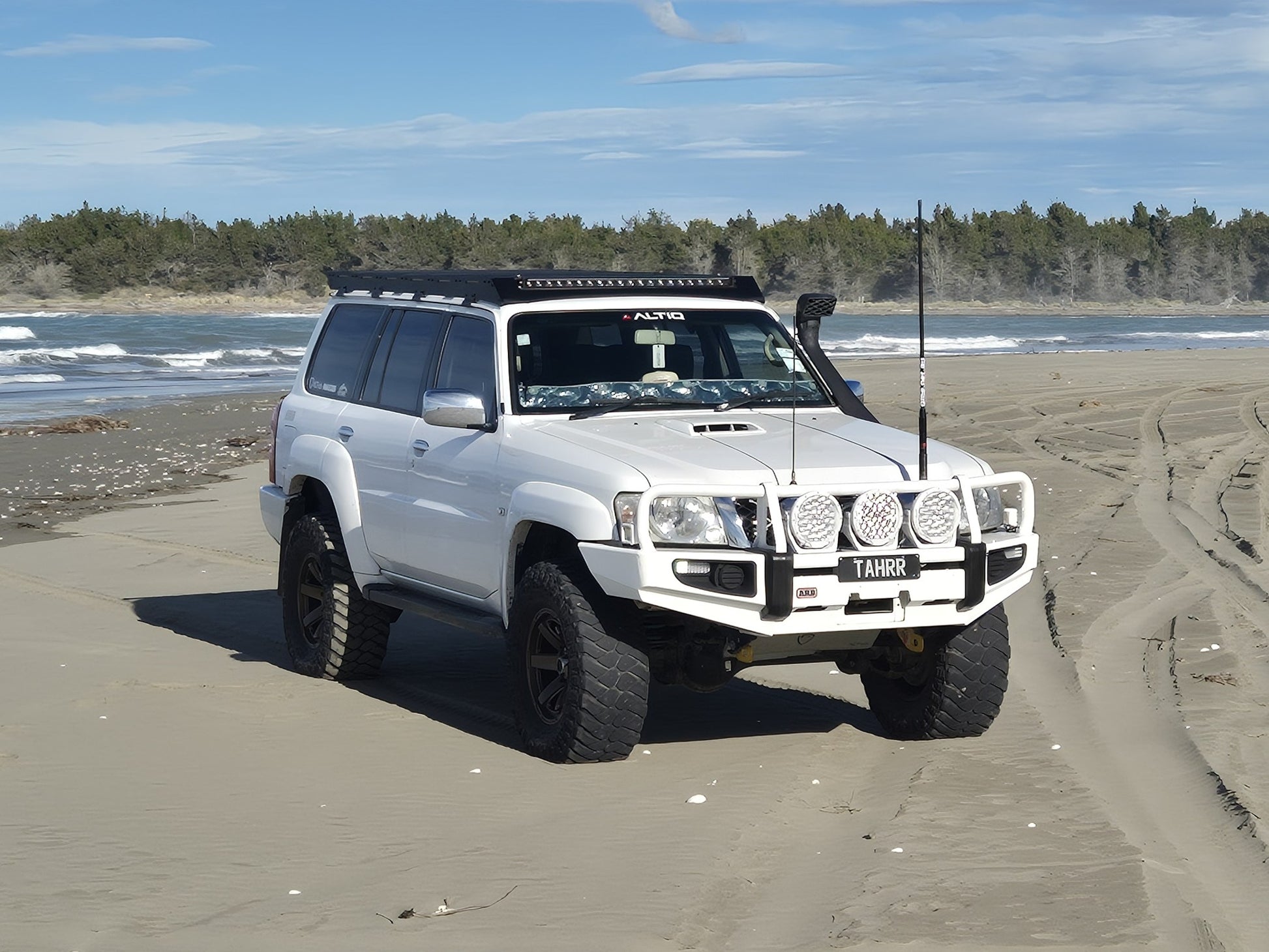

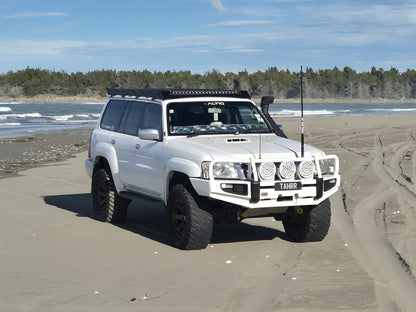

Nissan Patrol Y61 GU Roof Rack

ACFAB ASSAULT RACK — NZ MADE

Built for work. Ready for adventure.

──

THE SHORT VERSION

The ACFab Assault Rack is a custom-designed, ultra-low-profile roof rack built specifically for your vehicle. Sitting just 45mm above the roofline, it's among the lowest-profile roof racks available in New Zealand, helping minimise wind noise while maintaining a clean, factory-style appearance.

Built using marine-grade 5052 aluminium, finished in textured black powder coat, and weighing just 25kg.

• 6mm side rails

• 4mm folded cross bars

• Standard T-slot accessory compatibility

• Gutter mount clamps mounting system

Loading area: 2220mm × 1300mm

Designed and manufactured in Christchurch, New Zealand.

DIY-friendly instructions included. Professional installation recommended.

Christchurch installation available.

Nationwide shipping: $85.

NOTE - These are made to order. Leadtime is 3-4 weeks.

───

Want the details? Read on.

───

BUILT IN NEW ZEALAND

Not imported. Not rebadged.

Every Assault Rack is designed, cut, folded, and finished in Christchurch.

Built from marine-grade 5052 aluminium, it's corrosion resistant, exceptionally strong, and weighs just 25kg.

───

LOW PROFILE. CLEAN LOOK.

At just 45mm above the roofline, the Assault Rack sits lower than most conventional roof rack systems.

Each rack is designed around your vehicle's roofline, creating a clean, integrated appearance that looks like it belongs there.

The aerodynamic front fairing helps reduce wind noise and minimise drag, whether you're commuting, towing, or heading off the beaten track.

───

BUILT TO STAY PUT

The Assault Rack uses a gutter mount clamps system for a secure mechanical connection to your vehicle.

Solid, rattle-free setup designed to handle rough roads, tracks, and everyday work use.

───

WORKS WITH YOUR GEAR

The standard T-slot cross bars are compatible with most major accessory brands.

Awnings, recovery tracks, light bars, aerials, jerry can holders, tool mounts — if it uses an M8 bolt and T-slot system, it'll likely fit.

Use the gear you already own.

───

LOAD RATING

The Assault Rack is engineered to operate within your vehicle manufacturer's roof load rating.

For most vehicles with gutter mount systems this is typically around 100-150kg dynamic load, although ratings vary between vehicles. Static load that is when the vehicle is stationary (not moving) is 250-360 kg.

The rack itself is engineered to handle more than most vehicle roof ratings allow. The limiting factor is the vehicle roof structure, not the rack.

Always follow your vehicle manufacturer's specified roof load limits.

What is dynamic load rating?

Dynamic load rating refers to the maximum weight your vehicle's roof is certified to carry while the vehicle is moving. It accounts for forces generated by acceleration, braking, cornering, and road vibration — all of which increase the loads experienced by the roof structure.

This is a significantly more demanding standard than static load rating, which measures weight when the vehicle is stationary.

───

WHAT'S INCLUDED

• Assault Rack

• Mounting brackets and hardware

• Installation instructions

Professional installation recommended.

Christchurch installation available.
